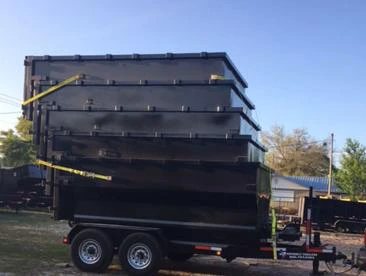

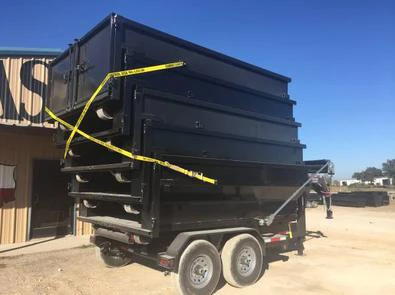

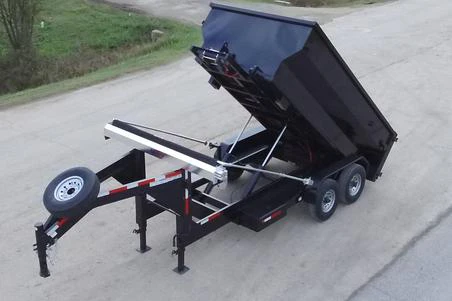

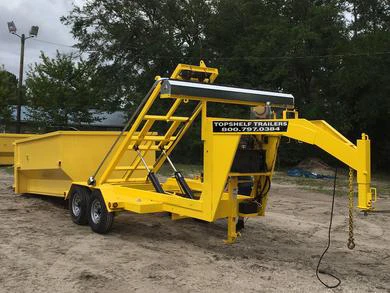

7 Wide 14, 16,18 k Roll Off Trailer
The most versatile roll off dump trailer we sell has to be the 7 wide roll offs. With its compact size and ease of maneuvering it is a favorite of roofers and contractors and property management services , especially in today’s smaller new home neighborhoods. With the ability to carry and dump 11, 13,15, 17,18,21 yards of debris these dumpsters can be located in tight spaces where full sized roll off dumpsters won’t work. With the easy to operate spring assisted electric tarp option you can make sure you meet your states D.O.T. requirements while hauling. Please see our specs below for more details.
Specifications
- G.V.W.R: 14,000 lbs
- Empty Weight: 2,500lbs (12’ trailer only, no additional options)
- Net payload: 11,500 lbs (12’ trailer only without dumpster)
- Axles: Tandem EZ-Lube 7,000 lb 8 lug (all wheel electric brakes)
- Suspension: Heavy duty slipper spring
- Brakes: All wheel electric brakes on all axles (12” x 2” brake shoe)
- Tires: New ST235/80R16 LRE 10 ply radial (3,520lbs ea)
- Wheels: 16” x 6” 8 hole white or silver mod (based on stock)
- Main Frame: 6” x 2” rectangular steel tubing
- Tongue: 8” channel iron
- Tilt Frame: 3” x 2” rectangular steel tubing (3/16” wall)
- Cross members: 3” channel iron
- Cross Batteries: Dual Group 27 deep cycle marine
- Charging system: Onboard 110v tester and charger (Also set up to charge while being towed)
- Pump: 1.7 gpm electric over hydraulic - power up / power down
- Toolbox: Locking tool box houses battery, charger, and pump
- Controller: 10’ corded remote
- Empty Hydraulics: Dual 3.5” bore cylinders (20k max rated lift)
- Winch System: 15,000Warn Industrial grade electric straight pull winch
- Coupler: 4 hole adjustable height 2 5/16” bumper pull ball
- Jack: 12,000 lb drop leg jack (dual jacks on gooseneck)
- Fenders: Heavy duty 14 gauge tread plate (reinforced)
- Safety Chains: Two heavy duty safety chains
- Lighting: All lifetime flush mount or recessed LED stop / turn / clearance lights
- Wiring: U.S. made sealed modular wiring harness
- Safety Equipment: All DOT required safety chains, emergency break-a-way switch and conspicuity tape.
- Finish: Fully primed and painted with 2 coats of automotive grade acrylic enamel
- Dumpster Flooring: 1/8” thick plate steel
- Dumpster Siding: 1/8” thick plate steel
- Dumpster Wall Height: 8” (60” and 72” available)
- Dumpster Doors: Double swing rear doors (open like barn doors)
- Dumpster Widths: 72” at bottom tapering to 92” at the top (makes dumpsters stackable for easier shipping) here.
